Virtual Temperature Screening

Minimize potential COVID-19 exposure for everyone on your premises.

Get Started

Virtual Temperature Screening

Contactless elevated temperature alerts

In response to the pandemic, a variety of institutions — including transportation agencies, businesses, factories, and first responders — are using thermal screening as an elevated body temperature (EBT) detection method and as part of employee health and screening (EH&S).

Virtual Temperature Screening is a turnkey, proprietary ECAMSECURE solution that detects elevated body temperature at high-volume entry points, allowing businesses to be more discreet, efficient, and effective in identifying individuals who need further screening.

No-touch and elevated body temperature detection
Virtual temperature screening without physical guard presence
Restrict/limit access to persons with elevated body temperature
Solution can be fully customized and integrated to your existing video management system
Send email alert with image of individuals when an elevated temperature is detected
Easy to use graphical interface to manage alerts via desktop or mobile device
Thermographic Temperature screening

How it works

Using a combination of highly accurate thermographic IP cameras, real-time software alerts, and plug-and-play hardware, Virtual Temperature Screening enables businesses to control access to their facilities and monitor elevated temperatures faster and with less risk to security personnel than manual methods.

All ECAMSECURE thermographic camera solutions feature:

High Accuracy Thermographic Camera

  • With advanced detectors and algorithms, our highly accurate temperature measurement thermal cameras can be used for temperature screening with accuracy up to ±0.5°C
  • High efficiency real-time one-second temperature detection threshold
  • Simultaneous target detection for effective crowd management
  • Smart detection that focuses on human subjects and ignores other heat sources
  • Optional audio alerts to notify operators when potential elevated skin temperature is detected
  • Increased safety — contactless elevated body temperature detection

Dedicated Video Management System Server

  • Monitor live-video video feed with temperature-sensing in real-time
  • Manage real-time alerts with our proprietary software
  • Isolated from your IT infrastructure to ensure adherence to strict IT policies
  • Optional wireless air-card
  • Power-of-ethernet (POE) switch

Real-time UL-Listed Central Station Monitoring

  • Contactless Installation with ECAMSECURE technical support
  • Real-time alerts can be sent to a US-based UL-Listed Central Station for completely virtual temperature screening and access management
  • Reduce on-site headcount during non-peak hours

Fixed Camera Virtual Temperature Screening

Key Features:

  • Embedded audio alarm can immediately notify operations of high temperature
  • Mountable on tripod/pole or building structure for temporary or long-term use
  • Accuracy of ±0.5°C (±0.9°F)
  • Integrated 4MP optical camera satisfies normal monitoring requirement
  • One-second temperature detection threshold

Package includes:

  • Thermographic bi-spectrum camera
  • NVR
  • Power-over-ethernet (POE) switch
  • Tripod
  • Virtual temperature monitoring software
  • LED monitor

Fixed Thermographic Screening Camera Models

Range of thermal imaging camera

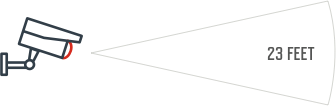

Fixed – Long Range

The Fixed 13/P is the gold-standard thermographic camera with industry-leading range and resolution. 13/P can accurately read temperature on persons standing up to 23 feet away.

Technical Specs:

  • Thermal resolution: 384 x 288
  • Optical resolution: 4MP/6mm
  • Camera-target distance range: 8.2-23ft
  • Blackbody housing for ±0.5°F detection accuracy: Available
  • Suitable for Virtual Turnstile Management: Yes
10ft Range of a thermal imaging camera

Fixed – Mid-range

A powerful thermal imaging solution for mid-size settings, this camera can accurately measure skin temperature on multiple persons from nearly 10 feet away.

Technical Specs:

  • Thermal resolution: 160 x 120
  • Optical resolution: 4MP/8mm
  • Camera-target distance range: 4.9-9.8ft
  • Blackbody housing for ±0.5°F detection accuracy: Available
  • Suitable for Virtual Turnstile Management: Yes
5ft range of a thermal imaging camera

Fixed – Short range

A versatile fixed thermal camera that’s ideal for generating temperature readings on persons in lines and waiting rooms.

Technical Specs:

  • Thermal resolution: 160 x 120
  • Optical resolution: 4MP/4mm
  • Camera-target distance range: 2.6-4.9ft
  • Blackbody housing for ±0.5°F detection accuracy: Available
  • Suitable for Virtual Turnstile Management: Yes

Mobile Handheld Virtual Temperature Screening

Key Features:

  • The camera connects via Wi-Fi with PC/mobile client
  • Carry in hand or mount on a tripod for mobile measurement
  • Embedded audio alarm can immediately notify operators of high temperature
  • The touch screen provides ease of use
  • Accuracy of ±0.5°C (±0.9°F)
  • Integrated 8MP optical camera satisfies normal monitoring requirement
  • One-second temperature detection threshold

Package Includes:

  • Handheld thermographic bi-spectrum camera
  • Tripod

Setup tips:

  • Measure from about 5-10 ft away
  • Set up the solution in a stable indoor environment without wind or direct sunlight
  • Power on for 5 minutes before measuring

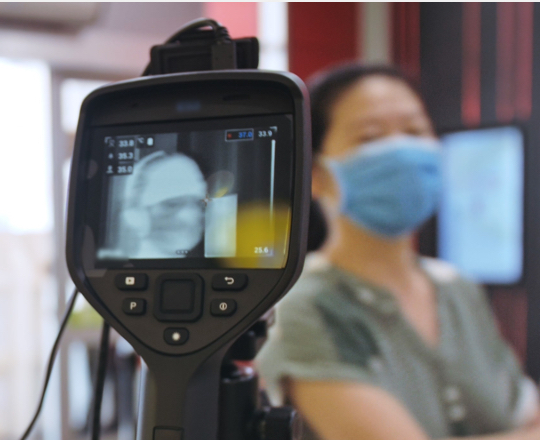

Handheld – Short-range Thermographic Screening

The go-to solution for confirming temperature one-on-one. This camera is ideal for security teams at staffed points of entry.

Technical Specs:

  • Thermal resolution: 160 x 120
  • Optical resolution: 8MP/6mm
  • Camera-target distance range: 3.3-6.6ft

Temperature-based access control management

ECAMSECURE can integrate turnstiles into virtual temperature screening systems for facilities that need advanced access management. Our automated gateway solutions quickly and accurately process personnel and visitors and can provide 24/7 protection.

Temperature-Based Access Management

Combining virtual temperature screening with a turnstile system allows you to ensure people with elevated skin temperature can’t enter your facility until cleared. We can integrate with your existing turnstile system or help you install brand-new hardware.

Flexible Controls and Communication

Turnstile access can be managed on-site by your security team, from ECAMSECURE’s 24/7 remote security hub, or a combination of both. ECAMSECURE can even communicate remotely with individuals on your behalf, giving them instructions when a potential elevated temperature is detected.

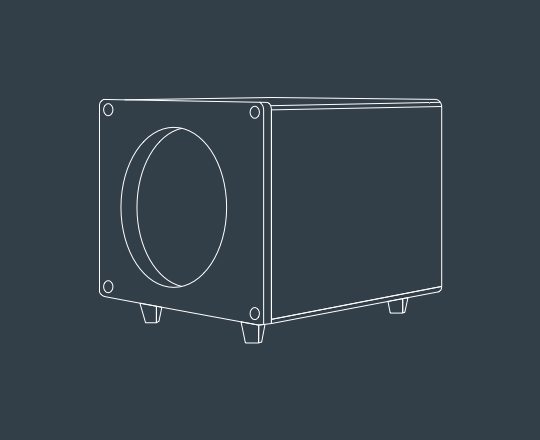

Thermal Imaging Camera Add-On Blackbox

Achieve greater accuracy with a blackbody add-on.

Blackbody housings help reduce false positives by calibrating fixed thermal cameras with higher precision. The FDA recommends blackbody add-ons as part of their Enforcement Policy for Telethermographic Systems.

When using a blackbody reference, ECAMSECURE fixed thermal cameras can generate readings that achieve ±0.5°F accuracy.

Disclaimer: Products depicted herein are not medical devices and are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of disease, in man or other animals. When configured correctly, the products discussed herein can identify individuals showing higher than average skin temperature relative to a sample population.
